dimmable LED power supplies - constant voltage 85480-V2

220-240V AC, Phasenanschn. LED-Netzgerät 24V 40-75,6W IP20 Dimmb.

Article nr.: 85480-V2

rutec dimmable LED power supply, constant voltage · for indoor use, IP20 · with screw connection and strain relief · CE, REACH, RoHS, MM, SELV · protection against short circuit, over current, over voltage and over temperature · cable cross-section connection terminals: 0.5 - 1.5 sq mm · housing: plastic · input voltage: 220-240 V AC · power: 40-75.6 W · output current: 3.15 A · output voltage: 24 V DC · LxWxH in mm: 204 x 53.5 x 30 · temperature range: -20 to +40°C · dimmable on primary side via TRIAC

Service

Technical data

Unit Code pcs
BAR code 4012094084800
Housing colour Blau

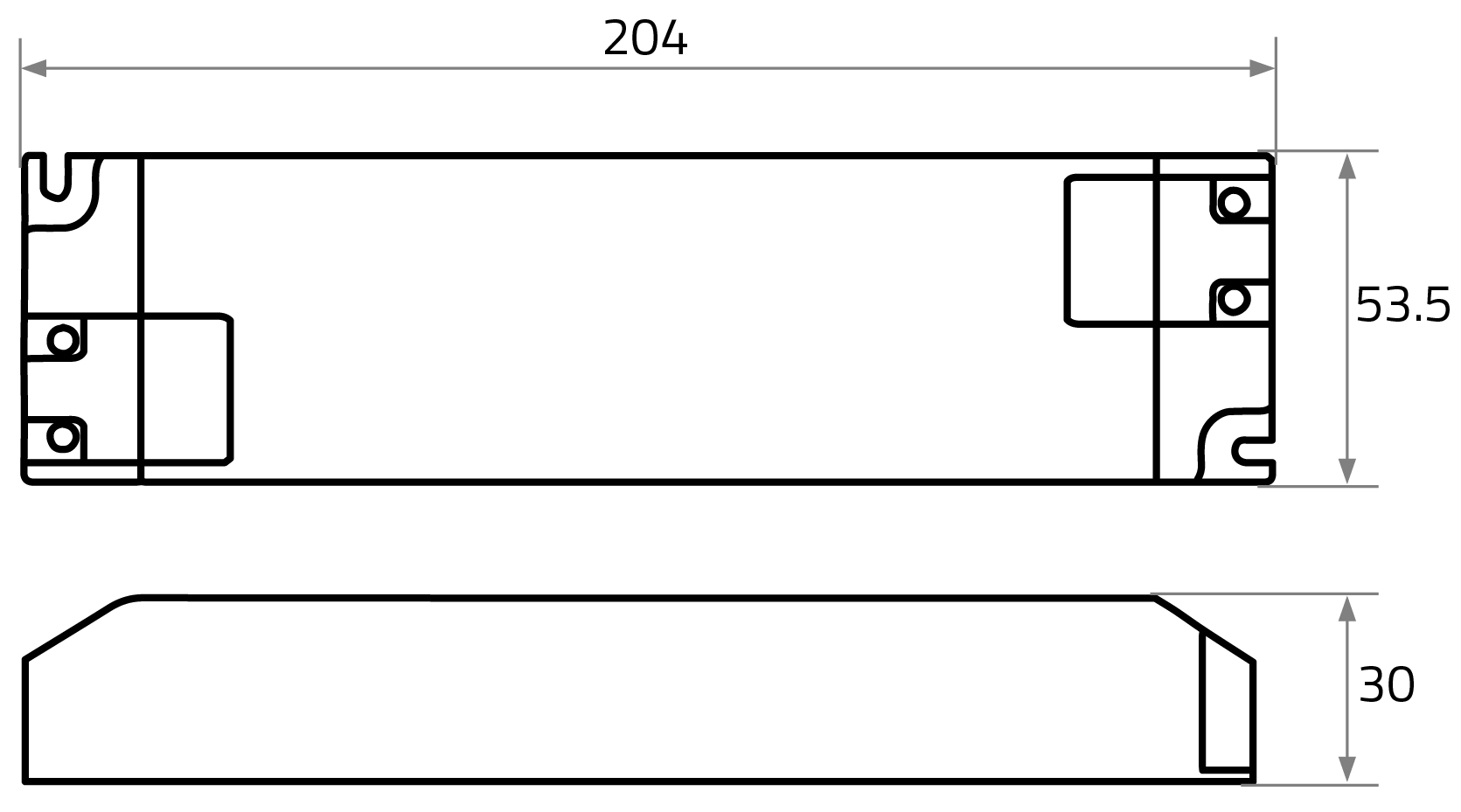

Length 204.00 mm
Width 53.50 mm
Height 30.00 mm
Lamp without
IP rating 20
Power 40-75,6 W
Psb 0,00 W
Pno 0,42 W
Current mA 3.150 mA
Input voltage 220-240
Output voltage 24
Material Kunststoff
Tollerance 5.00
Temperature range -20 - 40
Suitable light source LED
